| Model |

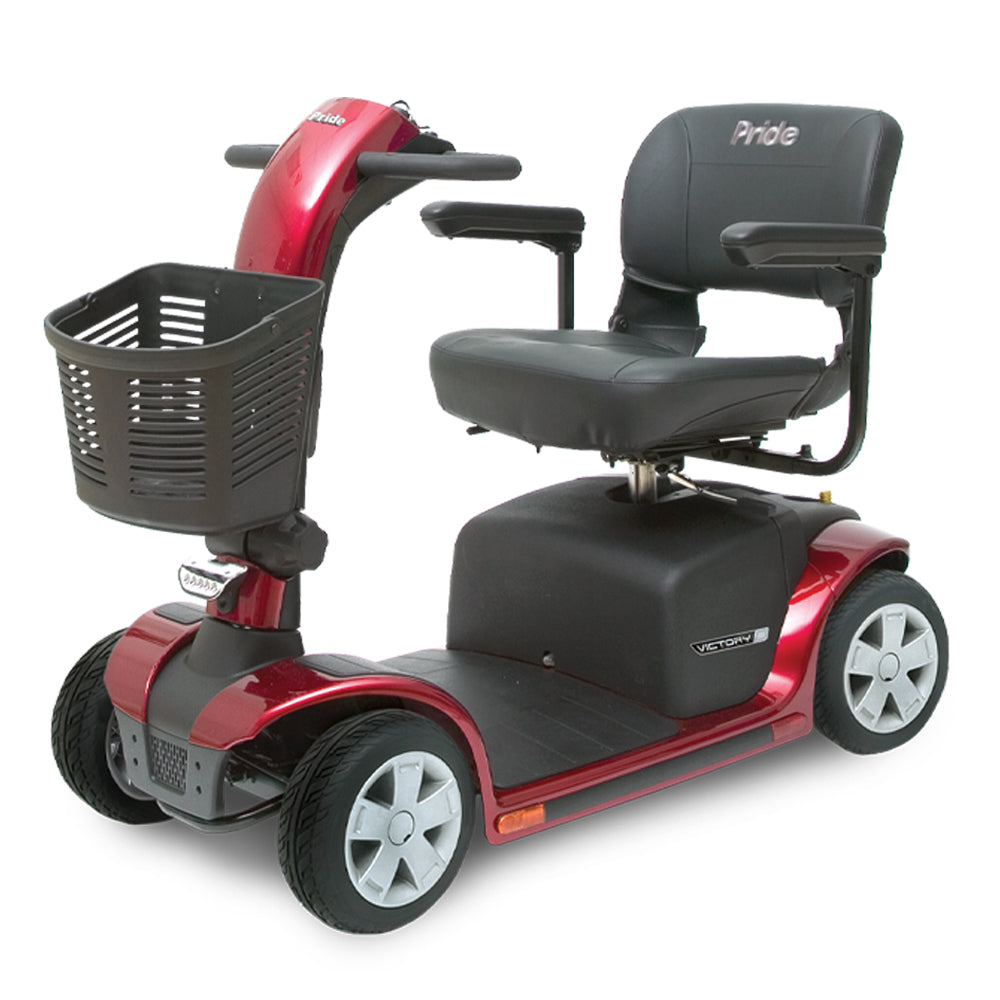

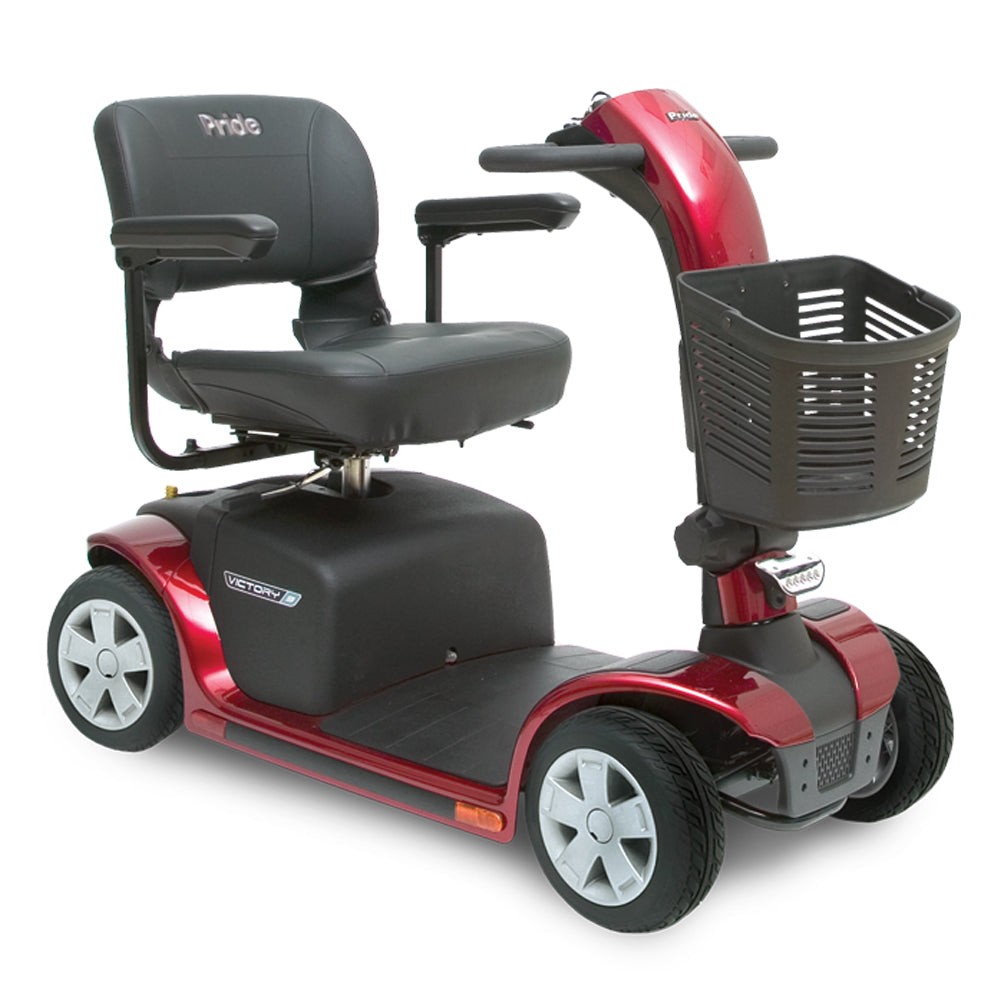

Victory 9 4-Wheel |
| HCPCS Code* |
K0800, Group 1 Standard |
| Model Number |
SC709 |
| Front Tires |
3" x 9" Solid |
| Rear Tires |
3" x 9" Solid |
| Maximum Speed* |
Up to 5.3 MPH |
| Ground Clearance |
1.8" at motor, 1.4" at anti-tip, 2.1" at motor bracket bolt |
| Turning Radius** |
51.5" |
| Overall Length** |
45.5" |
| Overall Width of Base** |
22.5" |
| Seat-to-Ground Height Range |
22.5" - 24" |
| Seat Type |
Foldable, Black Vinyl(18"x17") |
| Weight with Batteries |
179 lbs |
| Seat-to-Deck Height Range |
17.25"-18.75" |
| Battery Weight |
24 lbs. each |
| Battery Requirements |
(2)U1 |
| Maximum Range Per Charge* |
Up to 13 miles |
| Battery Charger |
Off-board, 3.5A |
| Maximum Weight Capacity |
300 lbs. |
| Standard Body Colors |
Candy Apple Red |
| Weight of Heaviest Piece** |
59 lbs. (Front section) |
| HCPCs Code |
K0800 |
| Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
