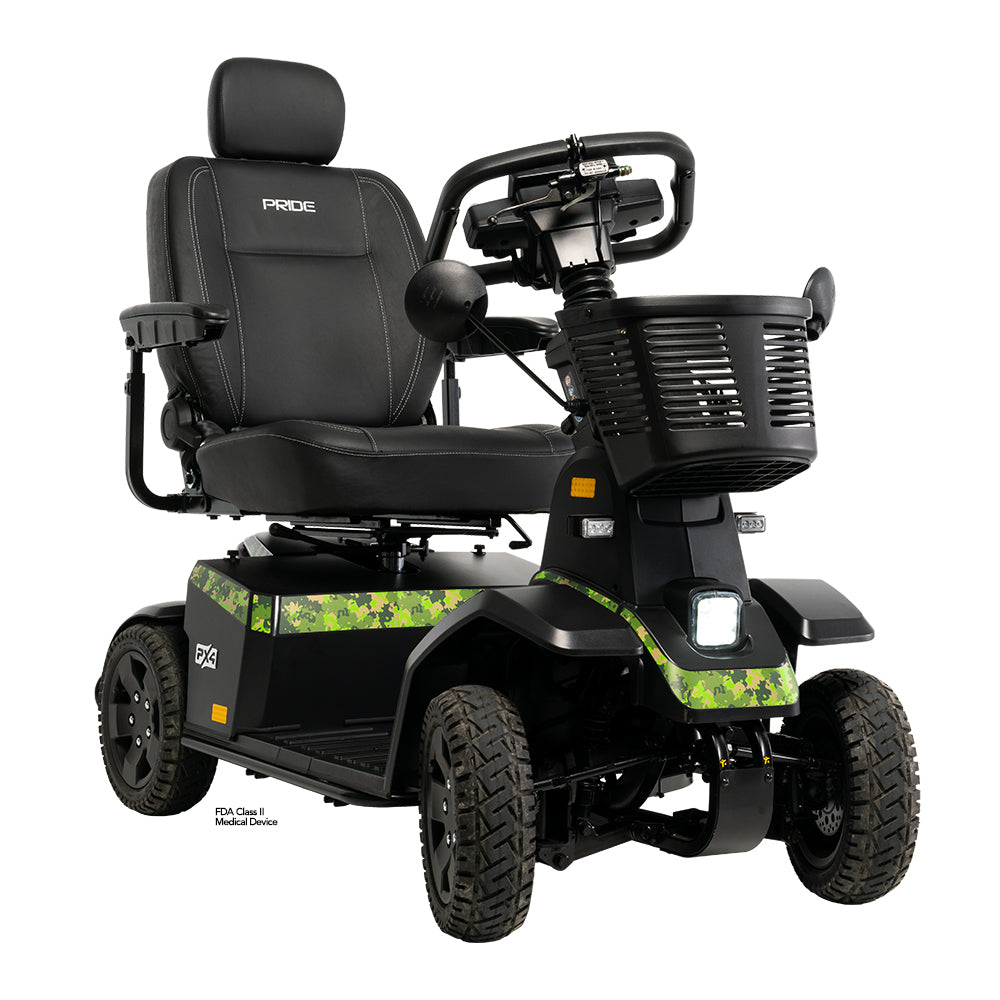

| Model |
PX4 |
| Model Number |
SC134 |
| HCPCS Code* |
K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not beconsidered as legal advice and not not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply. |

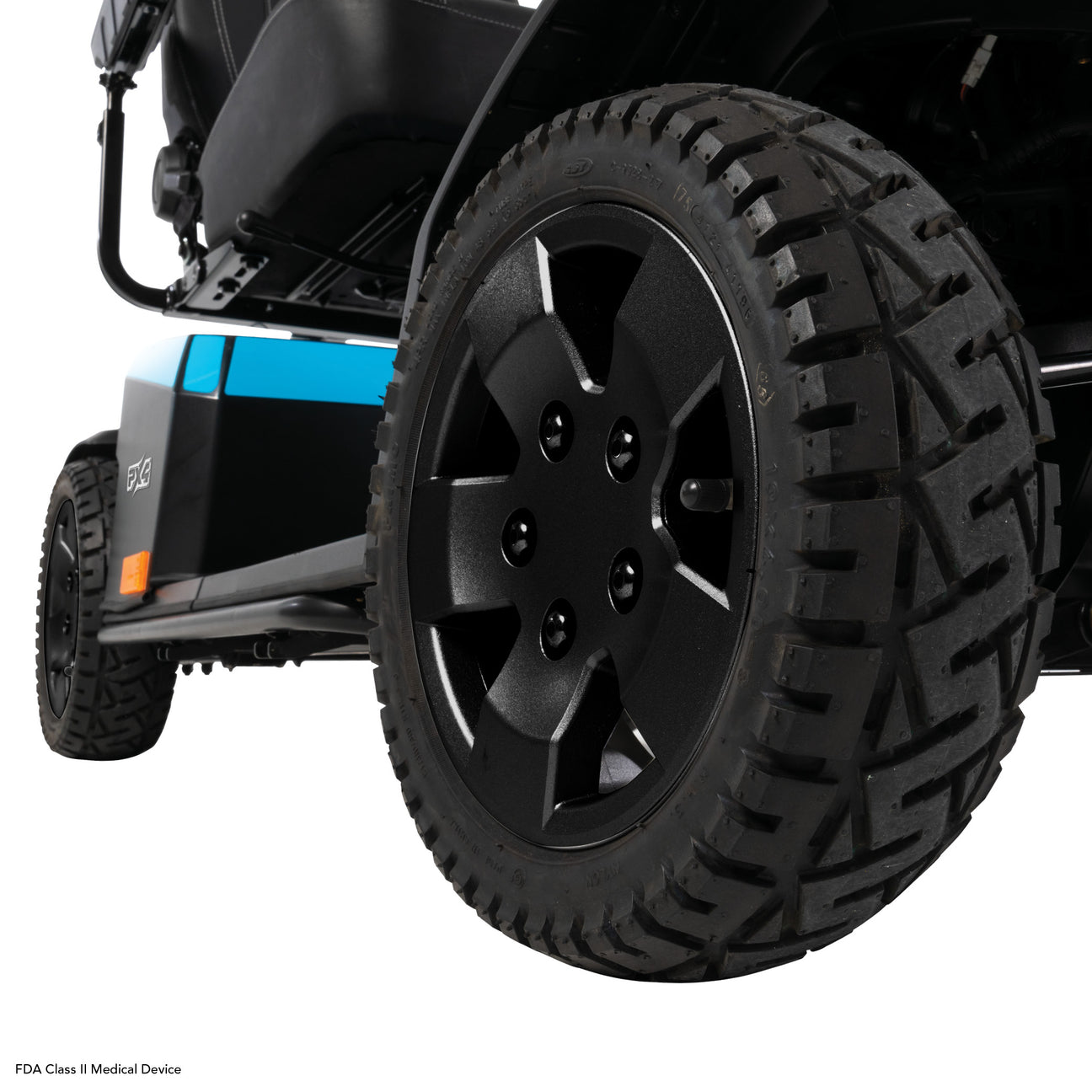

| Front Tires |
13"" pneumatic |
| Rear Tires |
13"" pneumatic |
| Maximum Speed* |
Up to 9.3 mph |
| Ground Clearance |
3.5" to motor, 4.4" at mid-deck |
| Turning Radius** |
82.3" |
| Overall Length** |
55.9"" |
| Overall Width of Base** |
27.5" |
| Seat-to-Ground Height Range |
24.2"-24.6" |
| Seat Type |
Limited Recline High Back, Black Vinyl, 18" x 18" |
| Weight** |
201.2 lbs. without seat or batteries, 253.8 lb.s with standard batteries, 351.4 lbs. with standard seat and batteries |
| Seat-to-Deck Height Range |
16.5" - 18.4" |
| Battery Requirements |
(2) 12V, sealed lead-acid, non-spillable deep-cycle Size: 75Ah |
| Maximum Range Per Charge* |
Up to 23.4 miles |
| Battery Charger |
Off-board, 8 amp |
| Maximum Weight Capacity |
500 lbs. |
| Standard Colors |

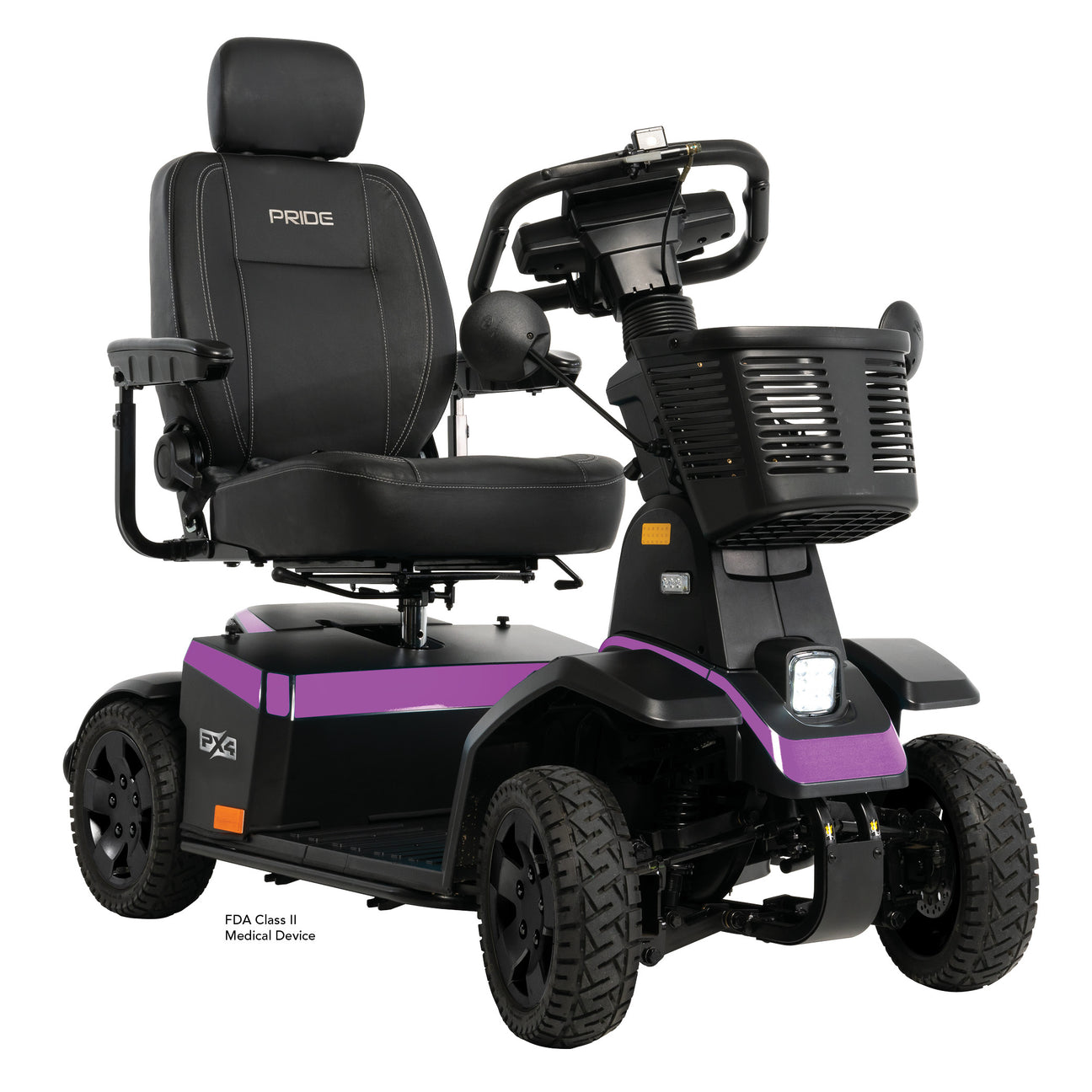

Satin Aluminum, Dark Violet, Peacock Blue, Sunflower |
| Weight of Heaviest Piece** |
N/A Unit does not disassemble |
|
| Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain
6 months on batteries |
