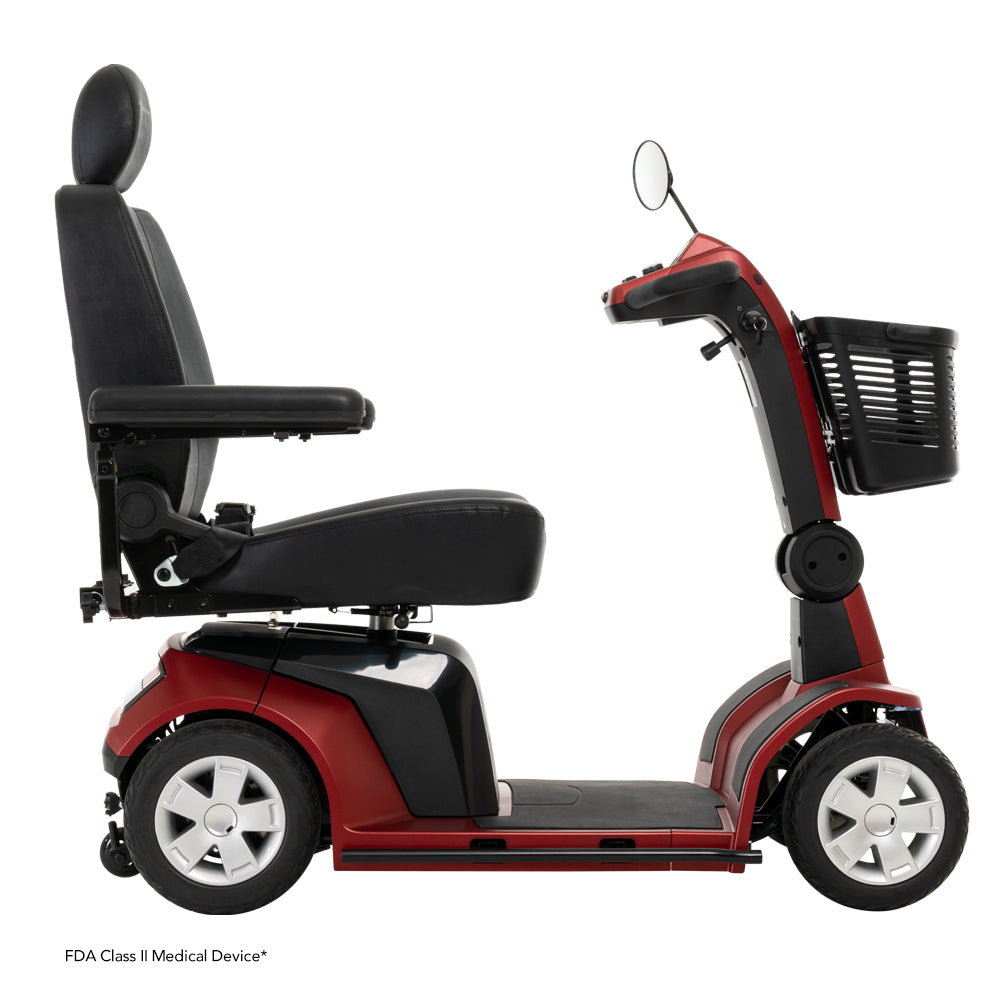

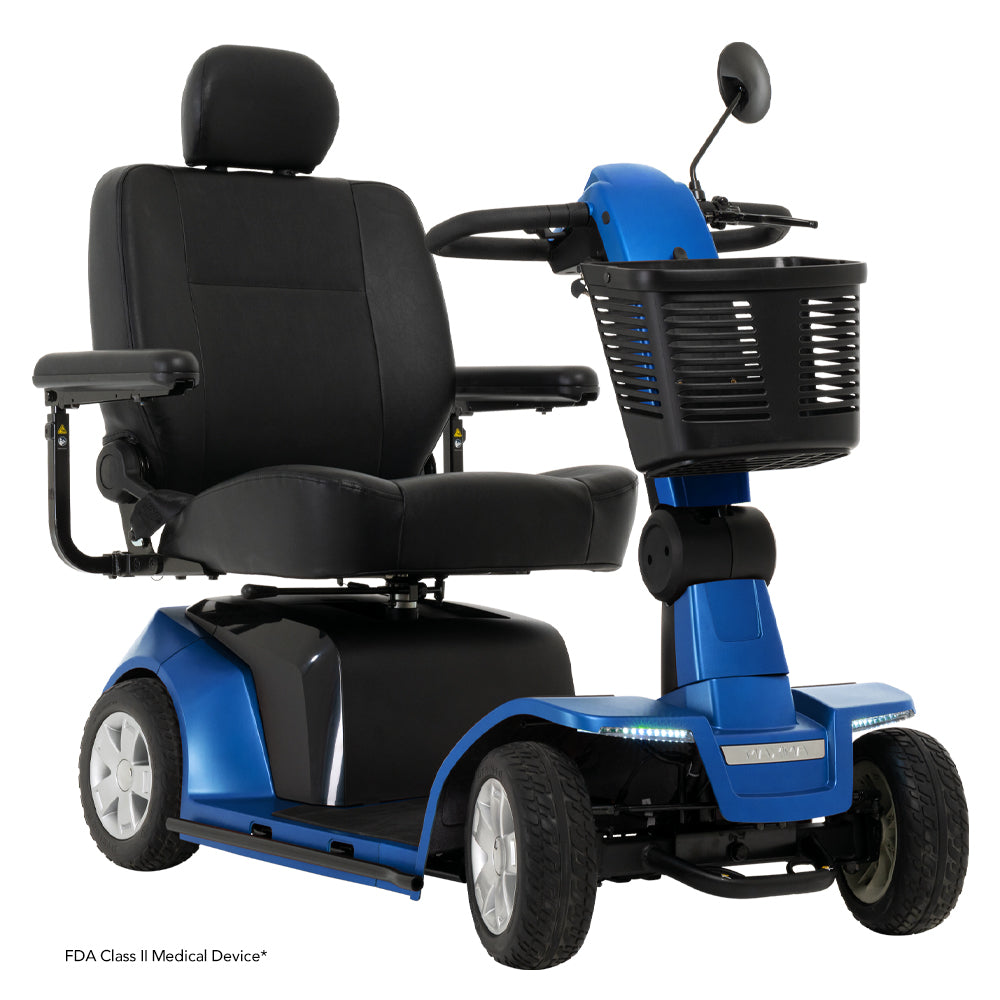

| Model |
Maxima 4-Wheel |
| Model Number |
SC941 |
| HCPCS Code* |
K0808 Group 2 Very Heavy Duty |
| Front Tires |
10" s 3.6" solid |
| Rear Tires |
10.75" x 3.6" solid |
| Maximum Speed* |
Up to 5.8 MPH |
| Ground Clearance |
2.25" at motor |
| Turning Radius** |
53" |
| Overall Length** |
47.5" |
| Overall Width of Base** |
27" (not including armrests) |
| Seat-to-Ground Height Range |
22.1"-24.1"; 22.32"-28.57" w/PES |
| Seat Type |
Depth adjustable, black vinyl 22" x 18"-20" |
| Weight** |
(w/out batteries): 196.8 lbs. |
| Seat-to-Deck Height Range |
17.13” - 19.13”;17.36” - 23.61” with Power Elevating Seat |
| Battery Weight |
36.5 lbs. ea. (NF-22) |
| Battery Requirements |
(2) NF-22 |
| Maximum Range Per Charge* |
Up to 19.5 miles |
| Battery Charger |
Off-board, 5A |
| Maximum Weight Capacity |
500 lbs. |
| Standard Body Colors |
Garnet Red (matte), Ocean Blue (matte) |
| Weight of Heaviest Piece** |
N/A Unit does not disassemble |
|
| Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain
6-month batteries |
