Pride Jazzy® Elite 14
Pride Jazzy® Elite 14
Regular price
$5,503.00
Regular price
Sale price
$5,503.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Jazzy® Elite 14 is designed for excellent indoor maneuverability and outstanding outdoor capability.
The Jazzy Elite 14 features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns around corners.
Large front wheels offer extra absorption over obstacles for superb climbing capabilities along with front anti-tip wheels for transitioning over grade changes and handling various terrains with ease.
- 300 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- 50 amp controller
- 5-year limited on frame; 13-month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries
| Model |
Jazzy Elite 14
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" foam-filled |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy® Seating | 20"W x 20"D |
| Synergy® Seat-to-Floor Range | 15.75" - 17.75" |

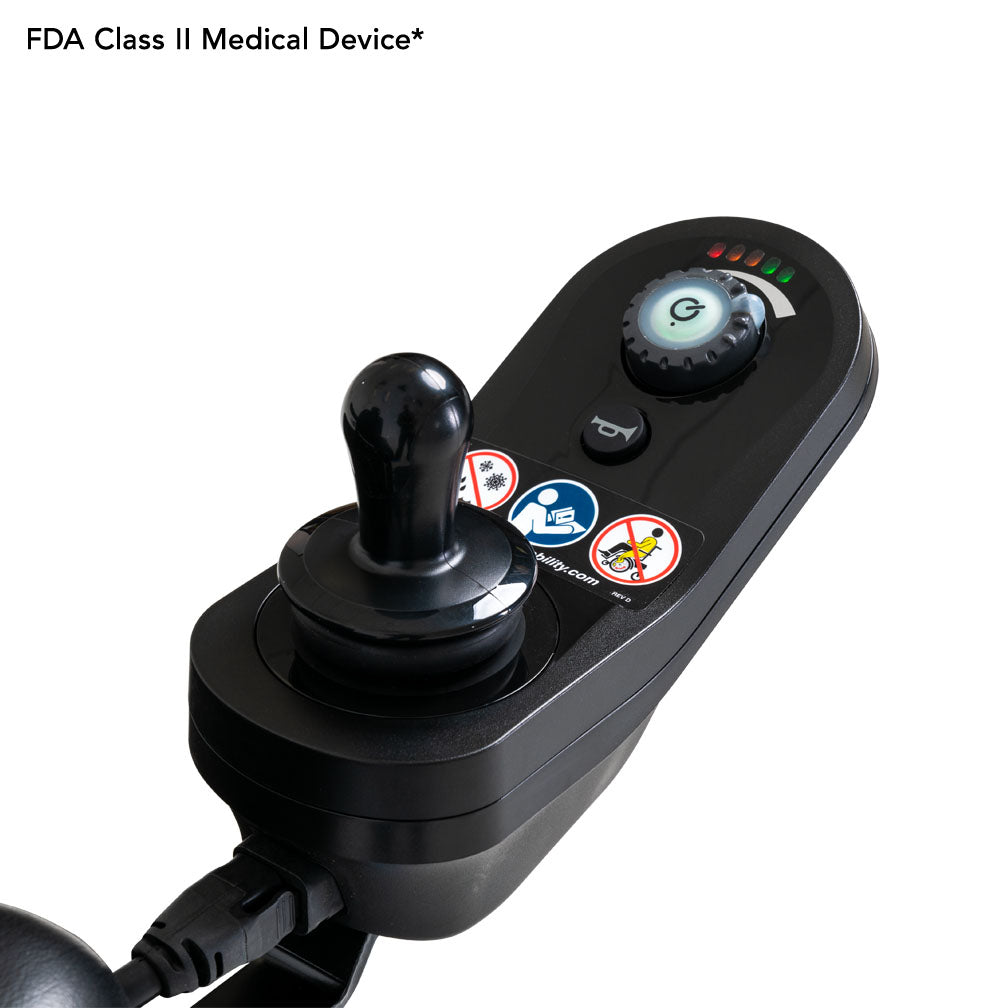

| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 17 miles |
| Battery Weight5 | 37 lbs. each |
| Weight of Heaviest Piece4 | 99 lbs |
| Standard Seat Weight | 52 lbs. (high-back) |
| Standard Seat Size | 16"x16"-18"; 18"x18"-20"; 20"x18"-20" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited warranty on frame; 5-year limited on frame; 13- month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries |
