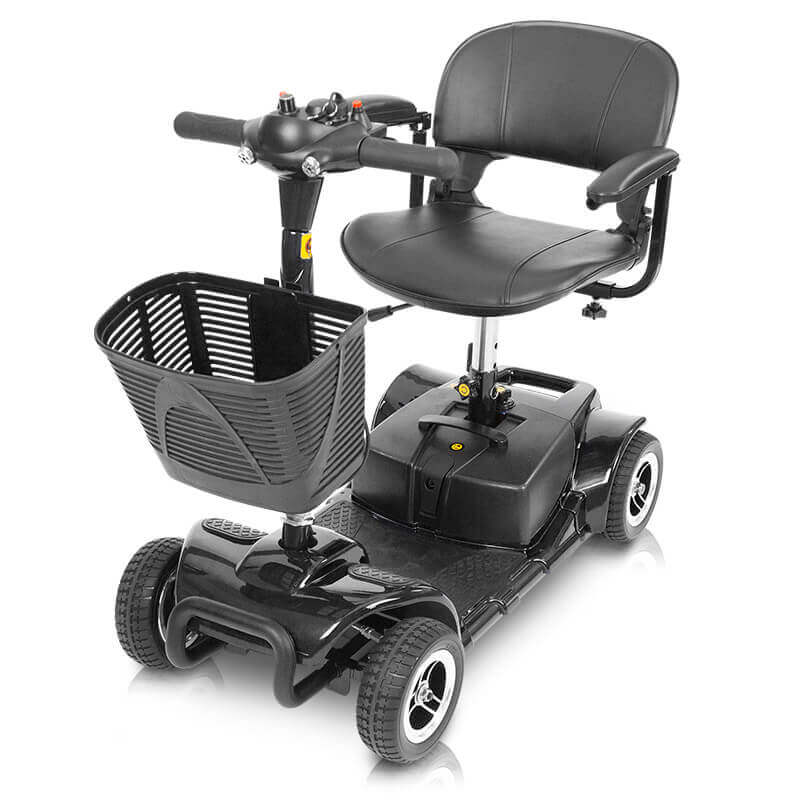

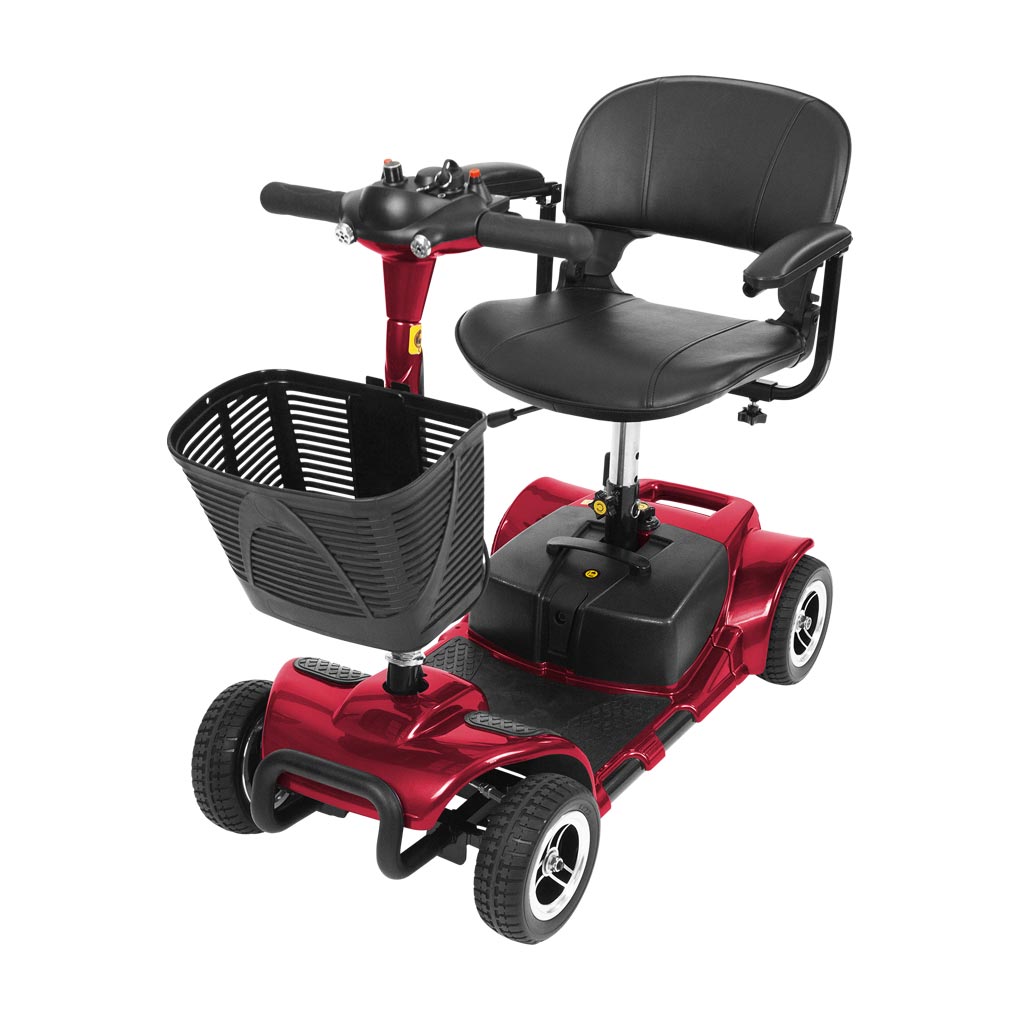

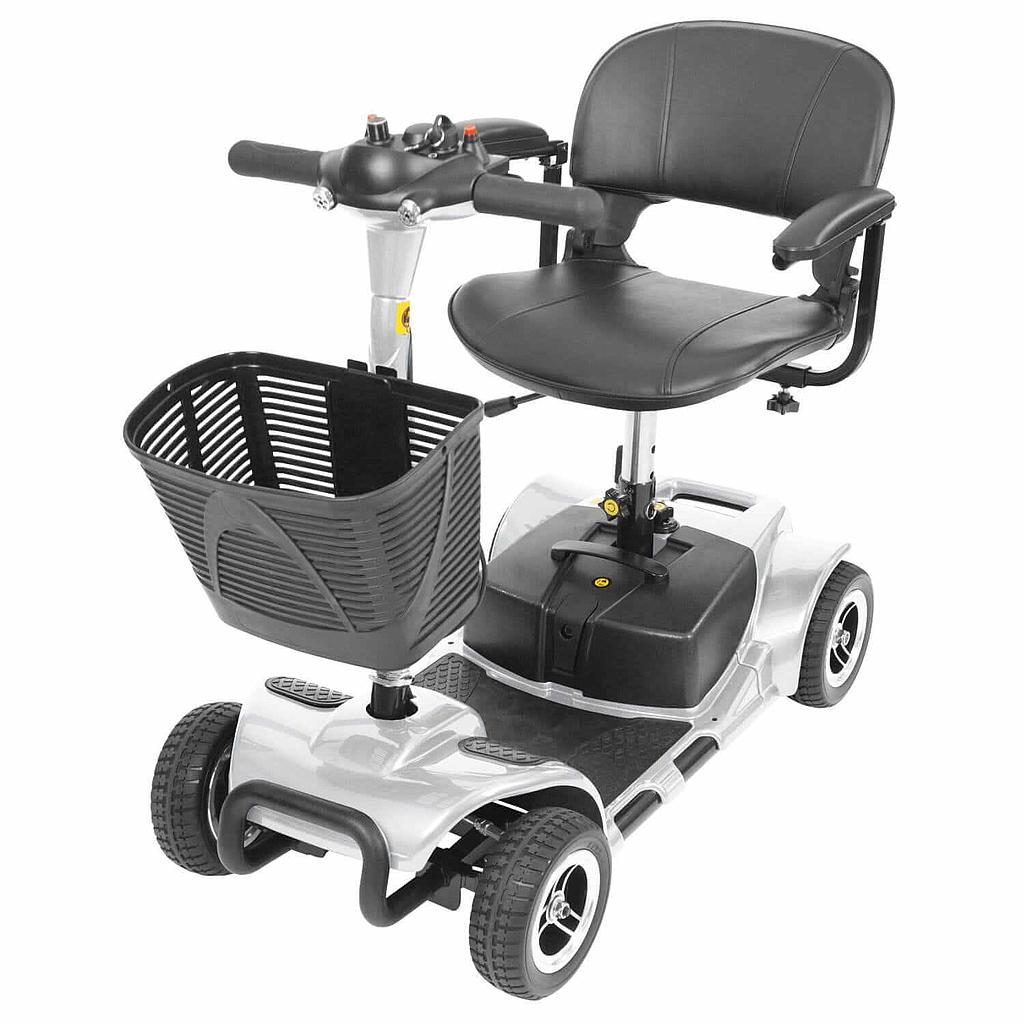

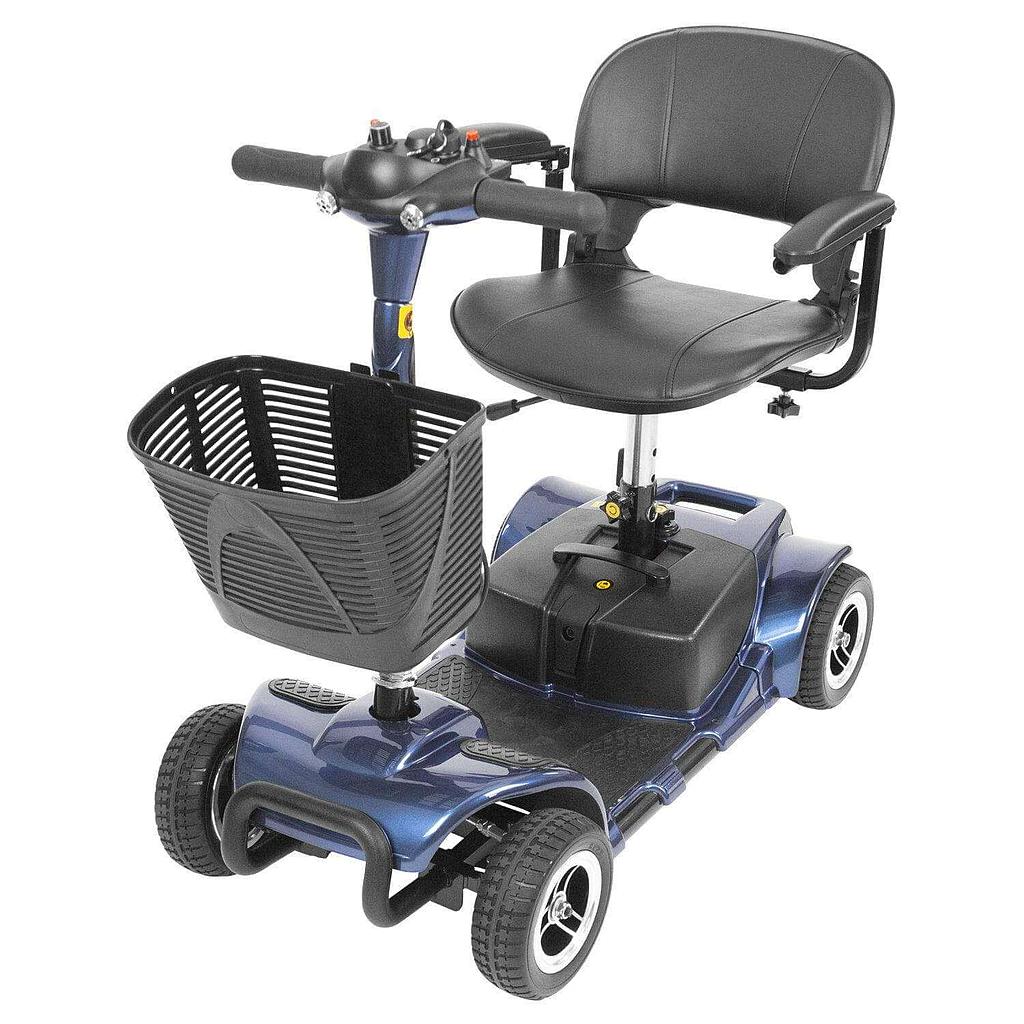

Vive 4 Wheel Mobility Scooter

Providing safe, stable mobility assistance, the Vive four-wheel mobility scooter easy maneuvers over smooth, indoor and outdoor surfaces such as concrete, pavement, tile and carpeting with a turning radius of 4.3’. The mobility scooter includes a lightly padded seat and backrest with flip-back armrests, 8” flat-free tires and a front-mounted storage basket for carrying daily necessities. With a top speed of 3.7 mph, the mobility scooter has a driving range of up to 12.4 miles per charge. The power scooter also quickly disassembles into four pieces to easily fit in an average size vehicle.

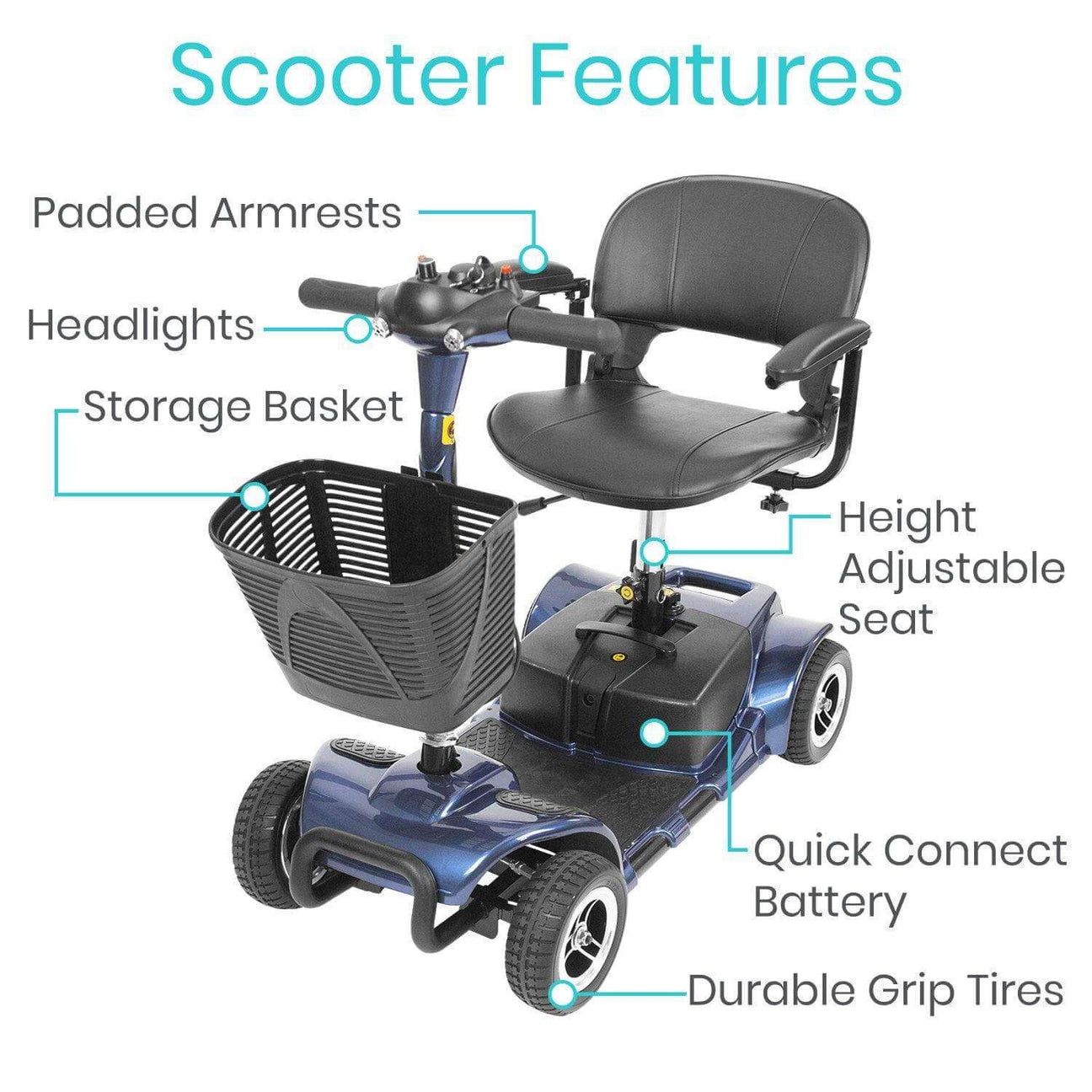

FEATURES

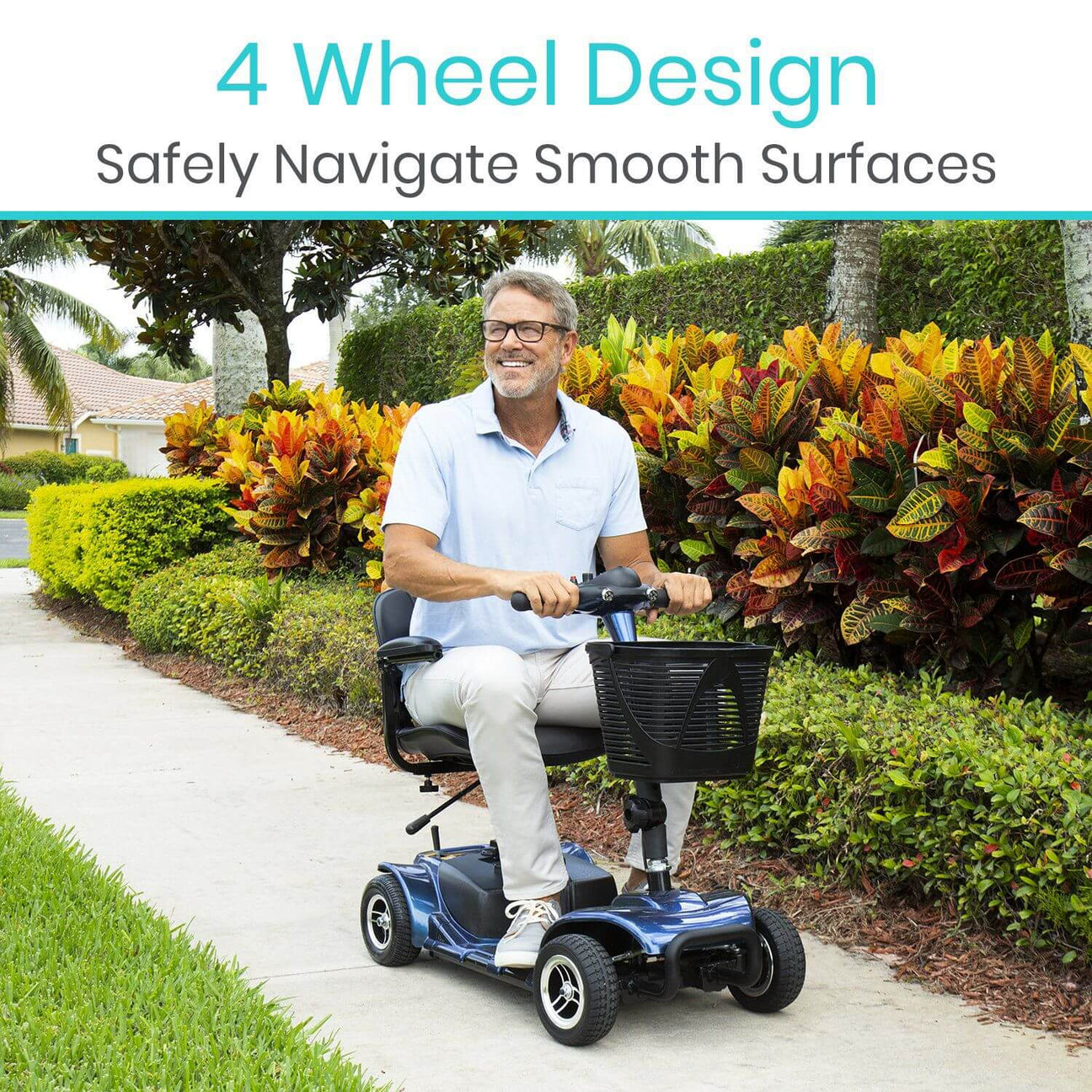

Safely Navigate Smooth Surfaces

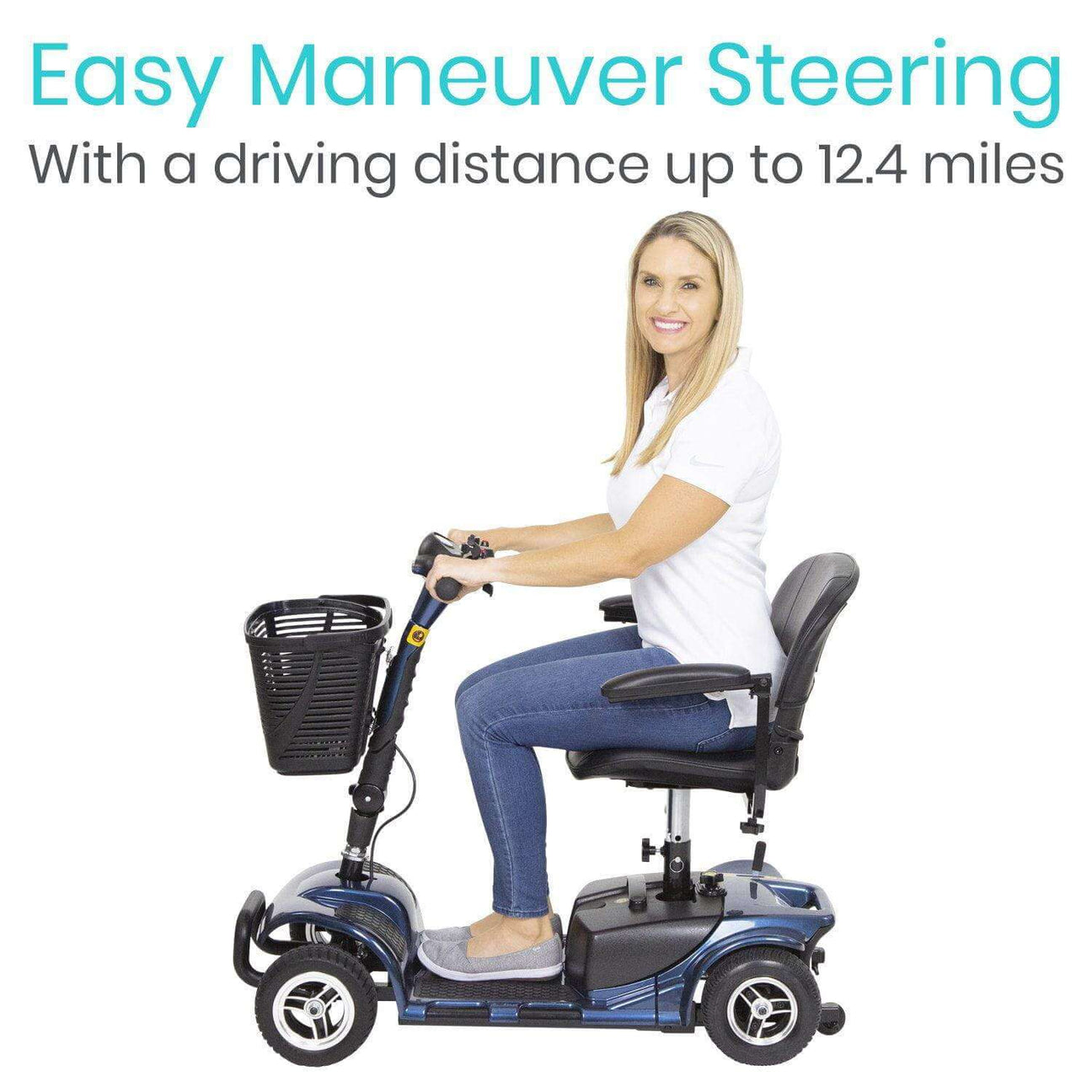

Easy maneuver over smooth, indoor and outdoor surfaces with comfort and ease with the Vive four-wheel mobility scooter. Designed to safely support up to 265 pounds, the mobility scooter features 8” flat-free, non-marking tires, a maximum speed of 3.7mph and a driving distance up to 12.4 miles per charge.



Comfortable Seating

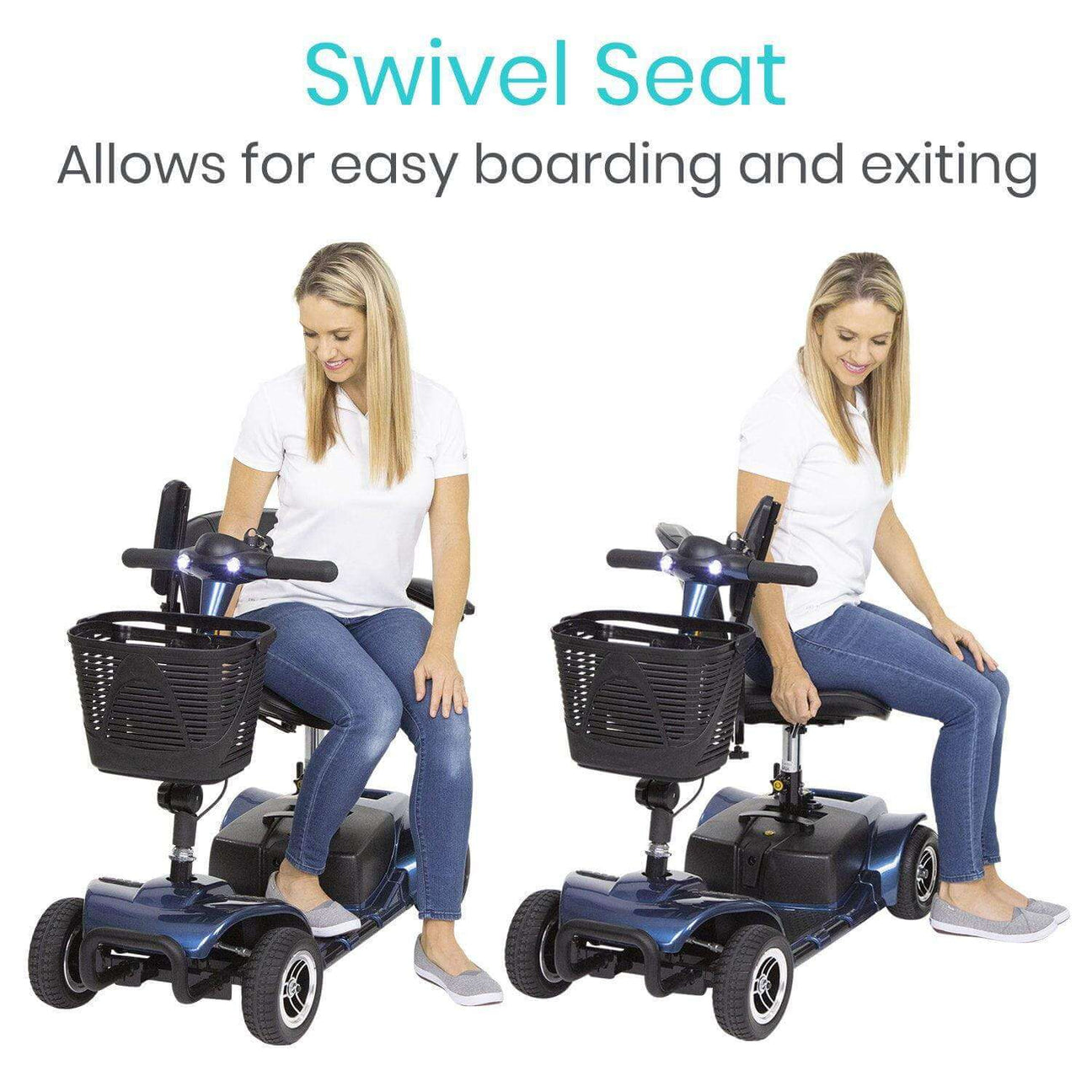

Comfortably padded, the wide, 15.75” seat and backrest provide gentle cushioning and support. The seat rotates and is also height adjustable for a customizable fit. Additionally, the scooter seat is surrounded by two padded armrests that adjust and flip upward for greater convenience when exiting or boarding.



Easy To Transport

Quickly disassemble the Vive mobility scooter into four separate pieces for easy portability. Featuring a folding tiller and removable seat, each section easily fits in the trunk of standard size vehicles. The rear section weighs 29 pounds and is the heaviest of the four pieces.



Intuitive Control Panel

Located on the tiller console, the control panel allows you to set the maximum speed with the variable speed dial, change from a forward to a reverse direction, turn on the headlight as well as produce a warning tone as needed.

The display also includes a color-coded battery life indicator for checking the status of the battery at a glance.



GENERAL SPECIFICATIONS



What’s includes?

Vive 4-Wheeled Mobility Scooter

Off-board battery charger





PRODUCT SPECIFICATIONS



Overall Dimensions: (L x W x H) 37.7” x 19.6” x 33”

Total Weight: 88.2 lbs.

Weight of Heaviest Piece: 29lbs. (rear bese)

Seat Height (from ground): 18.5” - 21.5

Seat Width: 17”

Seat Depth: 15”

Armrest Height (above seat): 6.75”

Seat Back Height: 13”

Net Weight: 88.2 lbs.

Maximum Speed: 3.7 mph

Maximum Braking Distance: ≤5”

Minimum Turning Radius: ≤4.3ft.

Weight Limit: 265 lbs.

Maximum Travel Distance (in Theory): 12.4 mi

Static Stability: ≥ 9°

Dynamic Stability: ≥ 6°

Climbing Ability: ≤ 9°

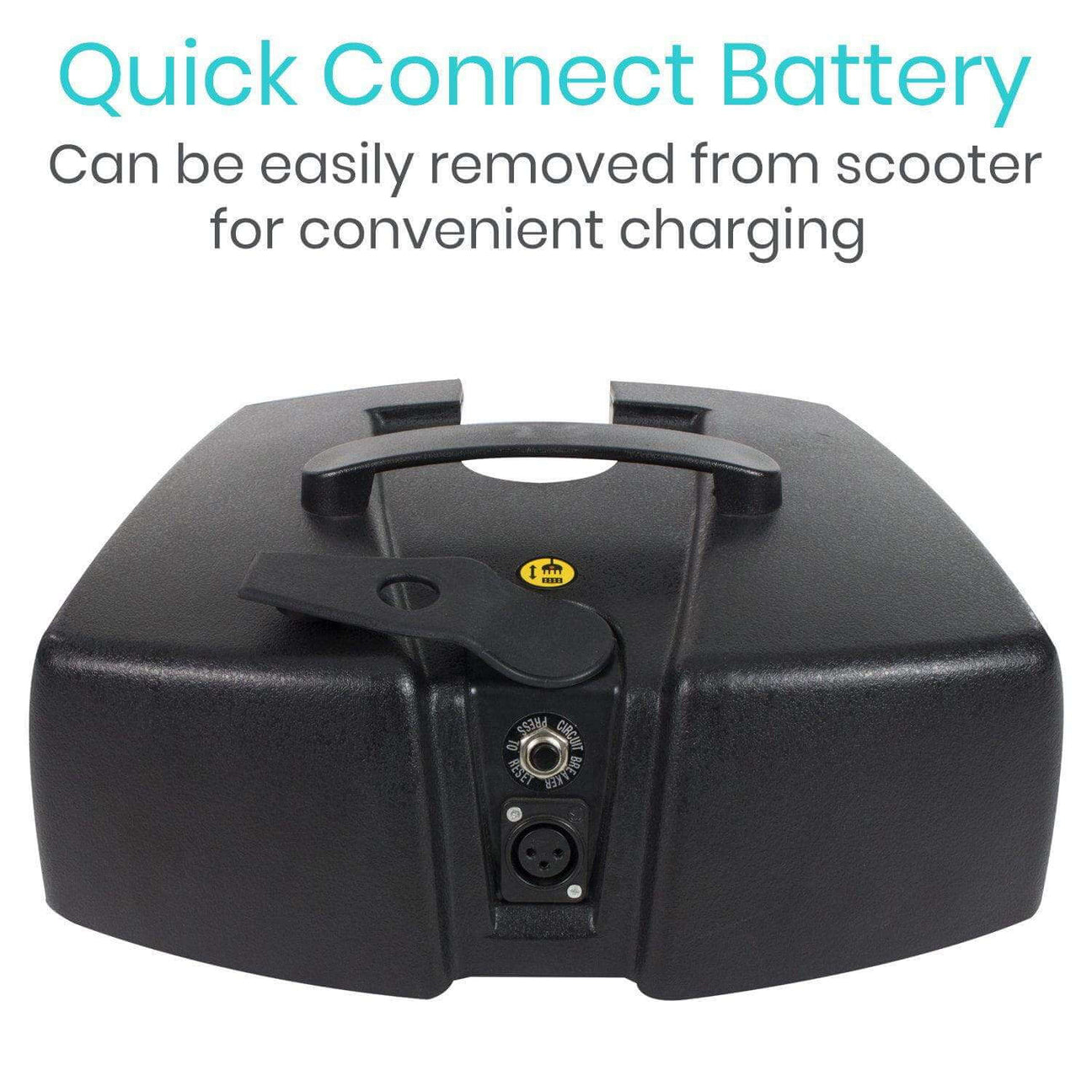

Battery: Lead-acid battery (24V/20AH)

Controller Maximum Output Current: 45A

Controller Minimum Output Current: 2A

Front Wheel Diameter: 7.5" (Solid)
